Running Your First Project on SmartUI

This guide will walk you through the process of running your first visual regression test using SmartUI, a powerful feature of LambdaTest that ensures your web applications look flawless across all browsers and devices.

Prerequisites

• Basic understanding of Command Line Interface and Selenium is required.
• Login to LambdaTest SmartUI with your credentials.

The following steps will guide you in running your first Visual Regression test on LambdaTest platform using SmartUI Selenium SDK integration.

Step 1: Create a SmartUI Project

The first step is to create a project with the application in which we will combine all your builds run on the project. To create a SmartUI Project, follow these steps:

• Go to Projects page and click on the New Project button.
• Select the platform as CLI for executing your SDK tests.
• Add name of the project, approver's name, and tags for any filter or easy navigation.
• Click on the Continue button.

Now select your desired framework and click on the Configure button. For the demo purpose we will select the Java framework.

Step 2: Configure your Test Suite dependencies

You can use your own project to configure and test it. For demo purposes, we are using the sample repository.

Sample repo

Download or Clone the code sample code repository from the LambdaTest GitHub repository to run the project on the SmartUI.

View on GitHub

• Add the following dependency in your pom.xml file

pom.xml

<dependency>
    <groupId>io.github.lambdatest</groupId>
    <artifactId>lambdatest-java-sdk</artifactId>
    <version>1.0.2</version>
</dependency>

note

You can check the latest version of lambdatest-java-sdk and update the latest version accordingly.

• Install your CLI and required modules for running SmartUI SDK and compile your defined dependencies in the pom.xml file:

npm i @lambdatest/smartui-cli
mvn clean compile

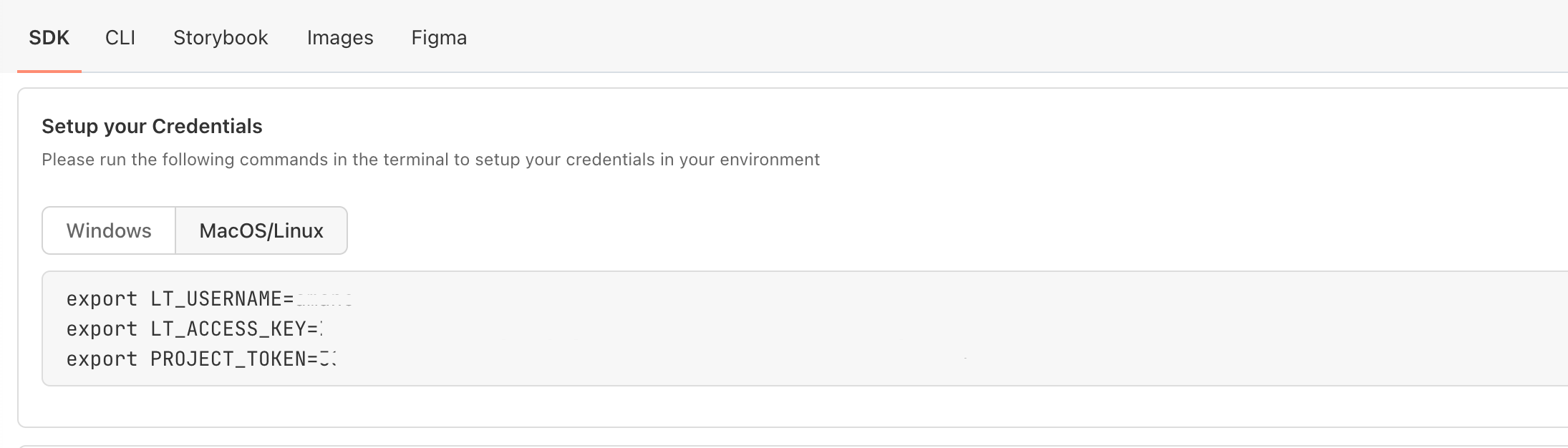

Step 3: Setup your Project Token and Environment Variables

Setup your project token show in the SmartUI app after, creating your project.

MacOS/Linux

export LT_USERNAME="undefined"
export LT_ACCESS_KEY="undefined"
export PROJECT_TOKEN="123456#1234abcd-****-****-****-************"

Windows - CMD

set LT_USERNAME="undefined"
set LT_ACCESS_KEY="undefined"
set PROJECT_TOKEN="123456#1234abcd-****-****-****-************"

Windows-PS

$Env:LT_USERNAME="undefined"
$Env:LT_ACCESS_KEY="undefined"
$Env:PROJECT_TOKEN="123456#1234abcd-****-****-****-************"

Step 4: Create and Configure SmartUI Config

You can now configure your project configurations on using various available options to run your project with the SmartUI integration. To generate the configuration file, please execute the following command:

npx smartui config:create .smartui.json

Once, the configuration file will be created, you will be seeing the default configuration pre-filled in the configuration file:

/smartui-sdk-project/.smartui.json

{
  "web": {
    "browsers": [
      "chrome",
      "firefox",
      "safari",
      "edge"
    ],
    "viewports": [
      [
        1920
      ],
      [
        1366
      ],
      [
        1028
      ]
    ] // Full Page screenshots are captured by default for web viewports
  },
  "mobile": {
    "devices": [
      "iPhone 14",  //iPhone 14 viewport
      "Galaxy S24"  //Galaxy S24 viewport
    ],
    "fullPage": true, //Full Page is true by default for mobile viewports
    "orientation": "portrait" //Change to "landscape" for landscape snapshot
  },
  "waitForTimeout": 1000, //Optional (Should only be used in case lazy-loading/async components are present)
  "waitForPageRender": 50000, //Optional (Should only be used in case of websites which take more than 30s to load)
  "enableJavaScript": false, //Enable javascript for all the screenshots of the project
  "allowedHostnames": [] //Additional hostnames to capture assets from
}

Advanced options in SmartUI configuration

• For capturing fullpage or viewport screenshots, please refer to this documentation
• For the list of available mobile viewports, please refer to this documentation
• For more information about SmartUI config global options, please refer to this documentation.

Step 5: Adding SmartUI function to take screenshot

You can incorporate SmartUI into your custom Selenium automation test (any platform) script by adding the smartuiSnapshot function in the required segment of selenium script of which we would like to take the screenshot, as shown below:

import io.github.lambdatest.*; //Importing the lambdatest-java SDK
//Rest of your code here

@Test
    public void basicTest() throws Exception {
        String spanText;
        System.out.println("Loading URL");

        driver.get("<Required URL>");
        // ... test code snippet
        SmartUISnapshot.smartuiSnapshot(driver, "<Screenshot Name>");
    }

Step 6: Execute the Tests on SmartUI Cloud

Execute visual regression tests on SmartUI using the following commands

npx smartui --config .smartui.json exec -- mvn test -D suite=sdk-cloud.xml

note

You may use the npx smartui --help command in case you are facing issues during the execution of SmartUI commands in the CLI.

You can see the Smart UI dashboard to view the results. This will help you identify the Mismatches from the existing Baseline build and do the required visual testing.
