Guided Walkthrough of SmartUI

This page gives you a guided walkthrough of all the things on the HyperExecute Dashboard and how you can get the most out of the platform once you have successfully run your first sample project.

Projects Page

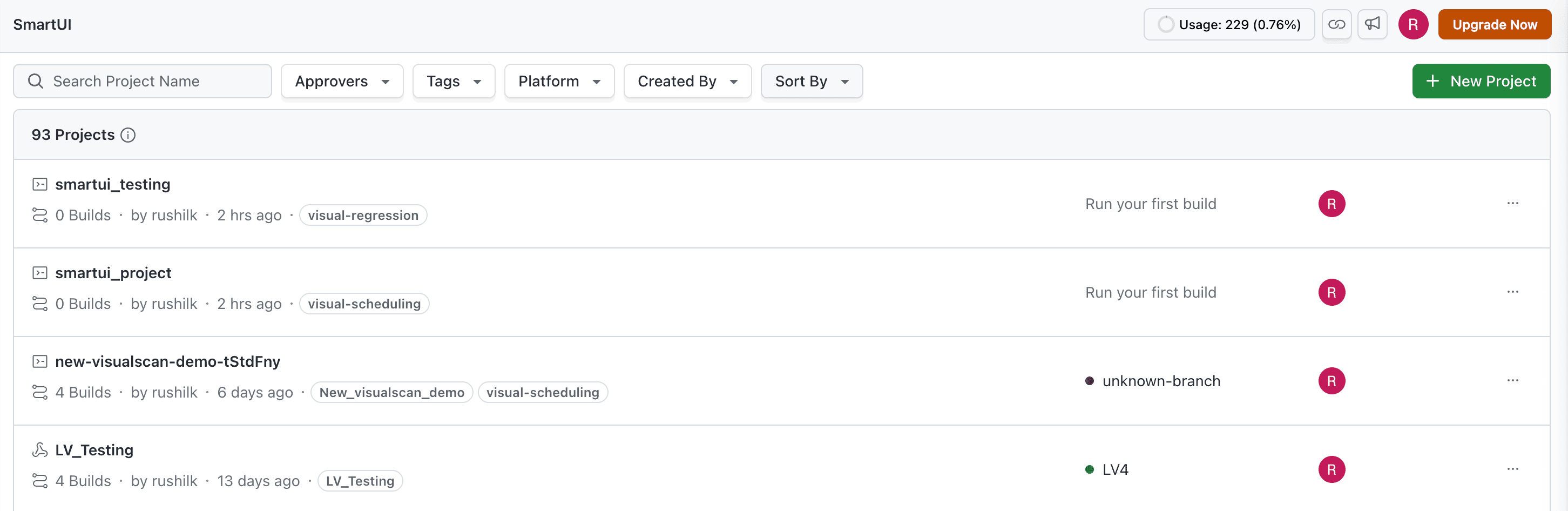

All the tests on SmartUI gets executed as a Project. All the Projects can be found on our Projects page. Each Project has a Approver, Tags, Platform, and a Sort By section followed by the details of the number of builds and who initiated the Project.

Projects Dashboard Details

The SmartUI dashboard presents a comparison between the baseline and the captured screenshots for visual regression testing. It provides essential insights to detect any UI anomalies.

Key Sections

• Baseline View : Displays the previously captured UI state for comparison. It serves as the reference point for regression testing.
• Captured View : Shows the latest UI version to compare against the baseline. Differences are highlighted for easy identification.

Diff Controls

Located at the center of the top menu, the Diff Controls allow testers to customize how visual differences are displayed, offering multiple options to refine the comparison process. The available modes are:

Layers

• Captured Diffs : Highlights the differences detected in the current captured screenshots when compared to the baseline. Ideal for spotting changes introduced in the latest version.
• Baseline Diffs : Displays the differences by focusing on the baseline's unique elements. Helps identify elements missing or changed in the new capture. Annotations : Allows users to add notes or highlight specific regions of interest on the screenshots. Useful for documenting findings or collaborating with team members.
• Annotations : Controls the visibility of your annotations in both parallel and landscape views with a toggle, default set to off, ensuring a clean visual field when not needed.

Diff Options

• Strict Mode : Highlights exact pixel mismatches between the baseline and captured screenshots. Best suited for detailed visual inspections where high precision is required.
• Smart Ignore : Iintelligently hides the displacement differences, allowing you to concentrate on actual content changes that impact the user experience.

Variants

The top menu includes browser variants, which allow cross-browser testing. Variants visible in the screenshot include: Chrome, Firefox, Edge, Playwright WebKit (Pw-Webkit). Each variant shows the same test across different browsers and resolutions, helping identify browser-specific visual issues.
